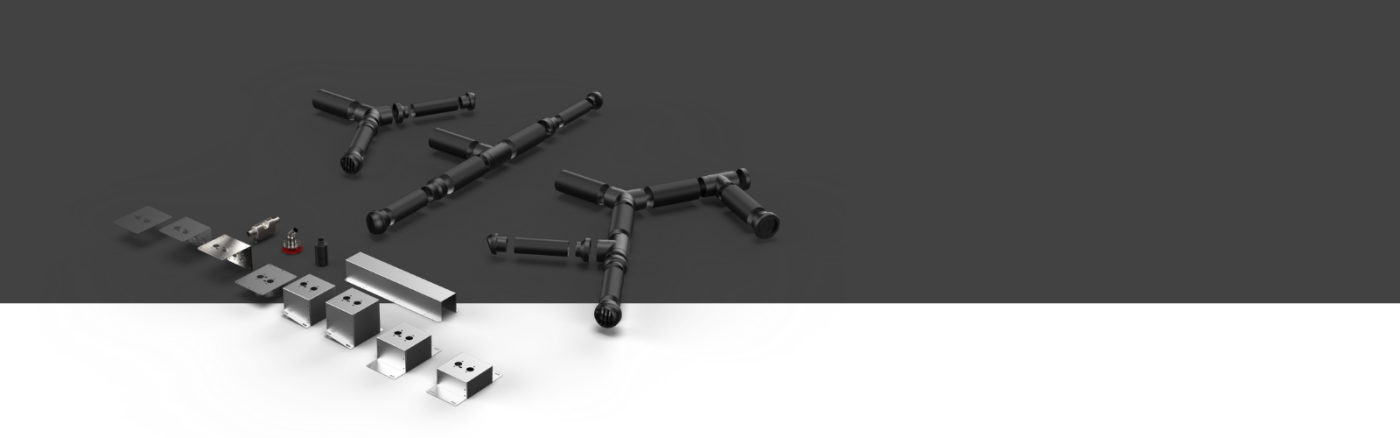

YH SeriesAccessories
Grilles, Directional and Comfort Parts
Make a difference in passenger comfort with Yılkar dry heaters
Grilles, directions, comfort and mounting parts
Air routing accessories and grilles for effective air distribution, silencer parts for your comfort, various assembly parts for your application, and all the solutions you need are offered by Yılkar.
You can download the general product catalog here.
You can downloadthe accessories catalog here.

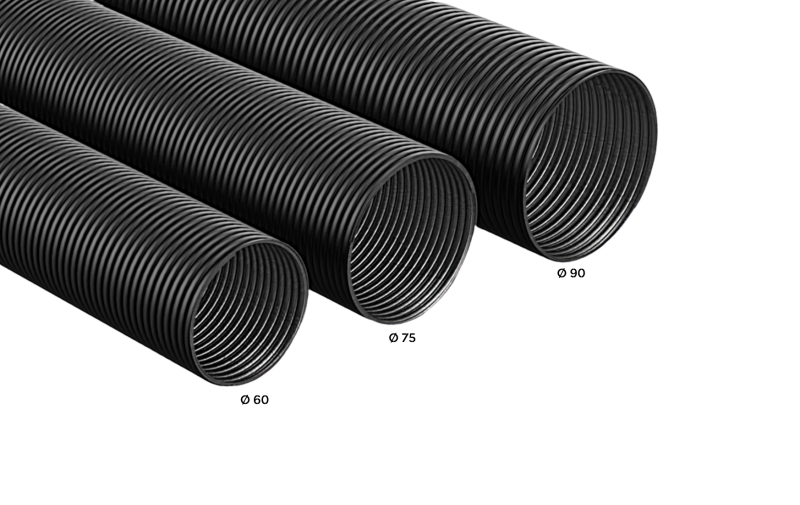

Kraft Hoses
Aluminum / Paper / Plastic 3-layer construction
Ø60 Kraft hose 1 meter (103.08.FH060.01)
Ø75 Kraft hose 1 meter (103.08.FH075.01)
Ø90 Kraft hose 1 meter (103.08.FH090.01)
T and Y Apparatus
Interlocking, suitable design for many combinations
1 - 103.01.06001.12 60 - 60 - 60 T air direction
2 - 103.01.06001.13 75 - 75 - 75 T air direction
3 - 103.01.06001.24 90 - 90 - 90 T air direction
4 - 103.01.06001.25 90 - 90 - 90 T air direction
5 - 103.01.06001.26 90 - 75 Diameter reduction adapter
6 - 103.01.06001.27 90 - 60 Diameter reduction adapter
Air Direction Apparatus
Interlocking, suitable design for many combinations
1 - 103.01.06001.30 90 - 90 Pipe extension apparatus
2 - 103.01.06001.23 90 - 75 Pipe extension reduction
3 - 103.01.06001.22 90 - 60 Pipe extension reduction
4 - 103.01.06001.26 90 - 75 Diameter reduction adapter
5 - 103.01.06001.27 90 - 60 Diameter reduction adapter
6 - 103.01.06001.28 90 Blanking cover
Outlet Culverts
Interlocking, suitable design for many combinations
1 - 103.01.06001.29 Ø90 Movable leaf culvert
2 - 103.01.06001.32 Ø90 Air outlet straight
3 - 103.01.06001.11 Ø90 Air outlet rotating
4 - 103.01.06001.10 Ø75 Air outlet rotating
5 - 103.01.06001.09 Ø60 Air outlet rotating
Intake Vent Grids
1 - 103.01.06001.06 Ø60 Air inlet grille flat
2 - 103.01.06001.07 Ø75 Air inlet grille flat
3 - 103.01.06001.08 Ø75 Air inlet grille flat
Fittings
1 - 101.11.01801.04 Flat base metal connector part
2 - 101.11.01801.10 L base metal connection part
3 - 101.11.01801.05 L base marine (stainless) connection part
4 - 101.11.01801.11 Protected flat base metal connection part
5 - 101.11.01802.01 YH 5 under seat metal base connection part
6 - 101.11.01801.03 YH 2 under seat metal base connection part
7 - 101.11.01801.09 100mm upgrade flat base metal connector part
6 - 101.11.01802.02 70mm upgrade flat base metal connector part
Comfort Parts
1 - 506.03.01801.01 Combustion air silencer adapter
2 - 506.06.YHEGS.01 Exhaust silencer adapter
3 - 506.06.YHMAD.01 Marine (stainless) exhaust outlet adapter
Various applications made using guiding apparatus.
