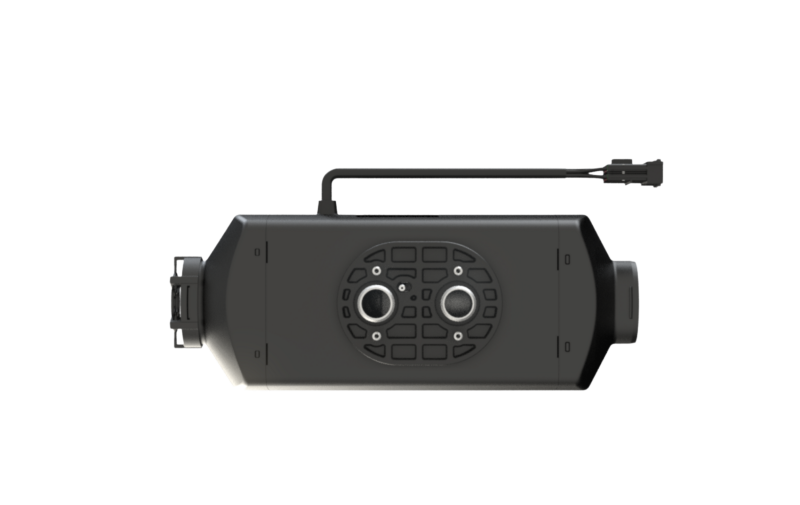

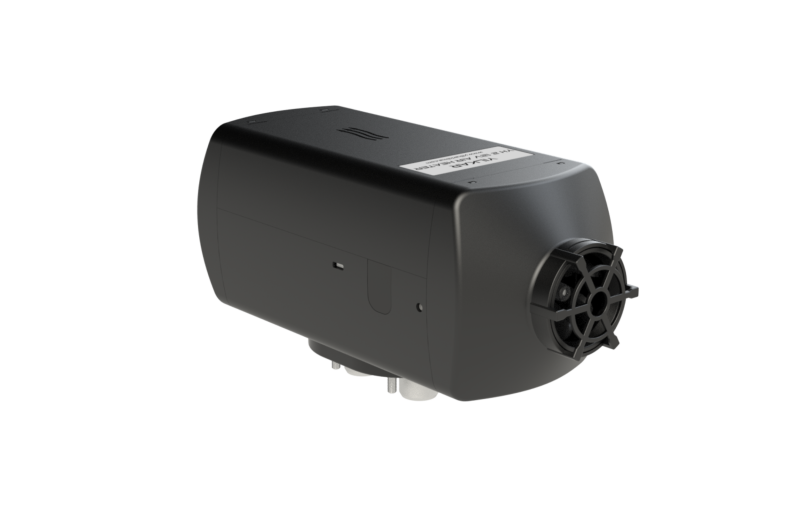

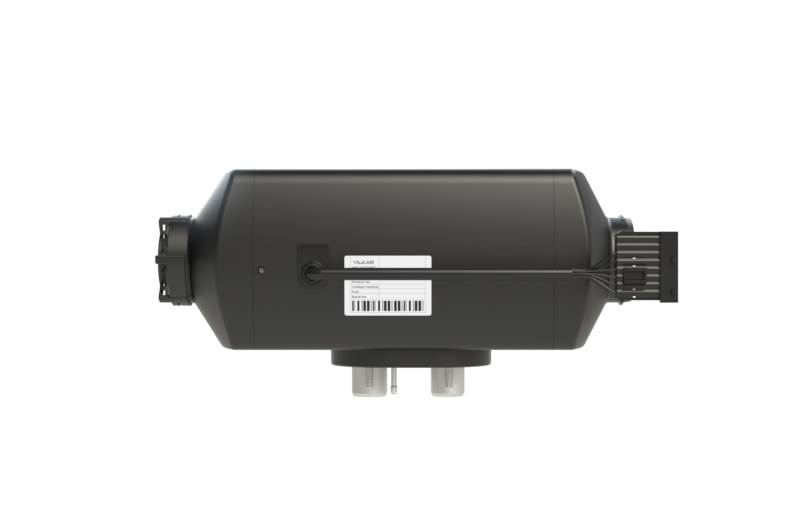

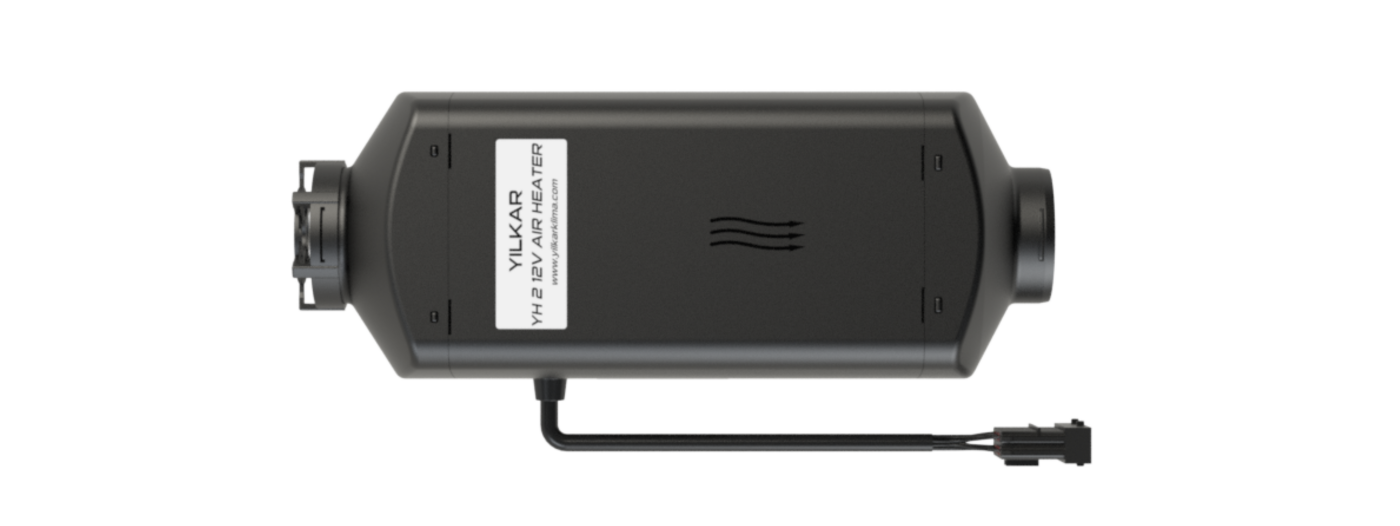

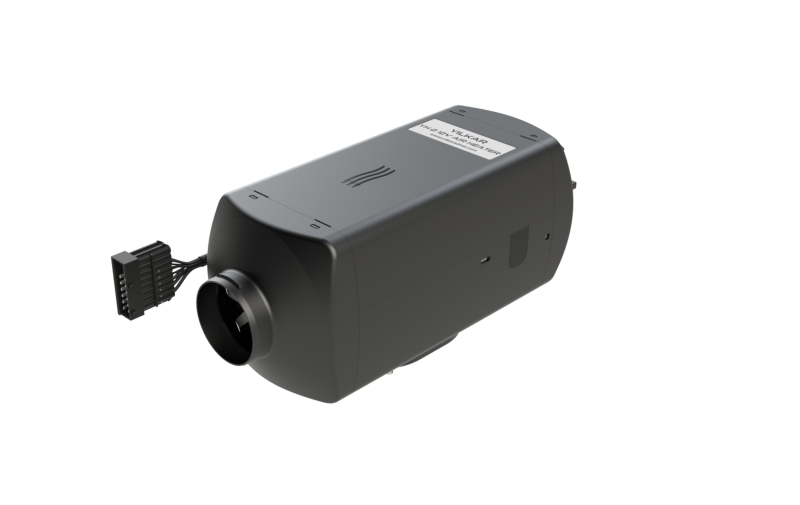

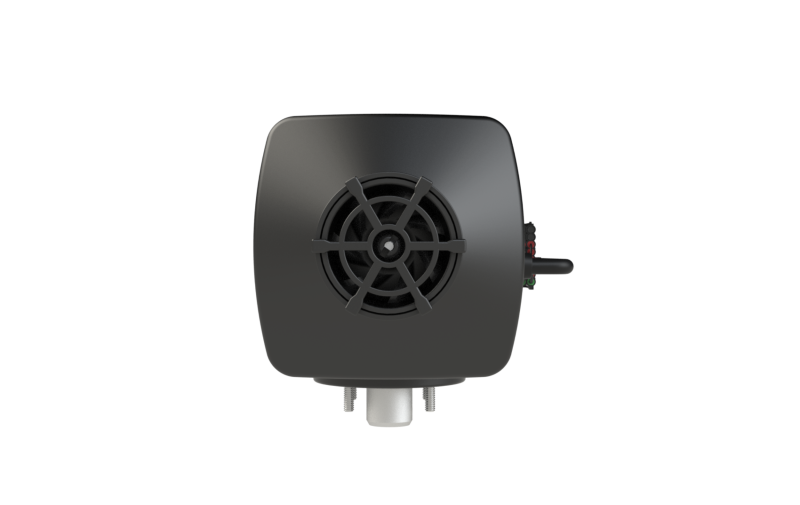

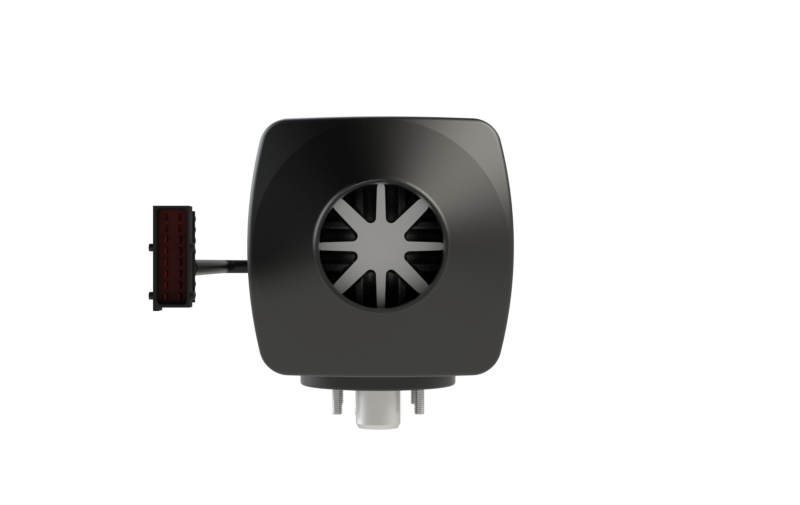

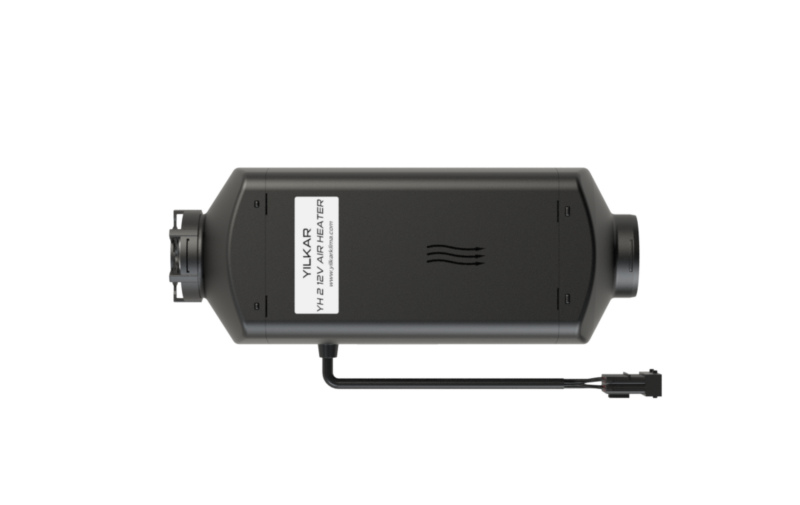

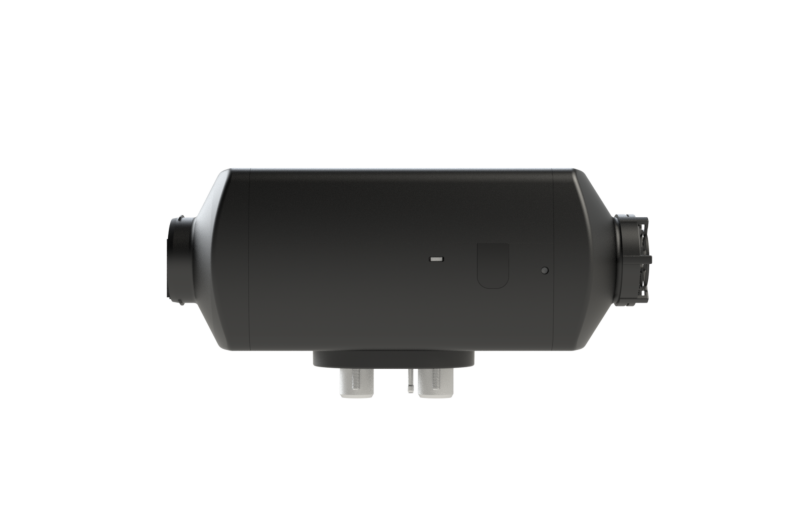

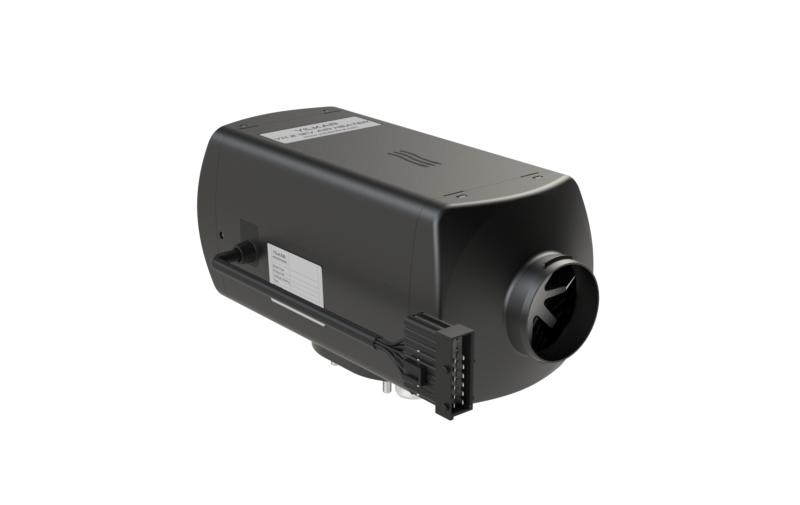

YH 2 Air Heater
Technical Information
ECE R122 Number 122 R - 0010869
ECE R10 Number 10R - 05 15114
Heating Capacity 0,9 - 2,5 kW
Air Flow 90 m³/h (max.)
Fuel Type Diesel
Fuel Consumption 0,28 lt/h (max.) - 0,2 lt/h (average)
Operating Voltage 12 / 24 VDC
Starting Current 8A @ 12VDC - 4A @ 24VDC
Operating Current (max.) 3A @ 12VDC - 1.5A @ 24VDC
Weight 3 kg
Unit Dimensions 320x130x150 mm
Product Documentation
You can download the Air Heater general product catalog here.
You can download the Air Heater installation instructions here.
You can download the YH Basic control panel instructions for use here.
You can download the YH Comfort control panel instructions for use here.
You can download the Air Heater accessories catalog here.
You can download the Service Diagnostic Program here.
Make a difference in passenger comfort with Yılkar Air Heaters
Air heater is a heater device that operates independently of the engine, has low electrical consumption, and has the ability to quickly heat the desired place by using the heat energy generated by the fuel.
Air Heater can be used anywhere that has a small energy source (battery) that can make electrical components work. Therefore, it has many uses. These; people transport, truck cabins, caravans, marine, ambulance, etc. special utility vehicles, defense industry, and various electric vehicles.

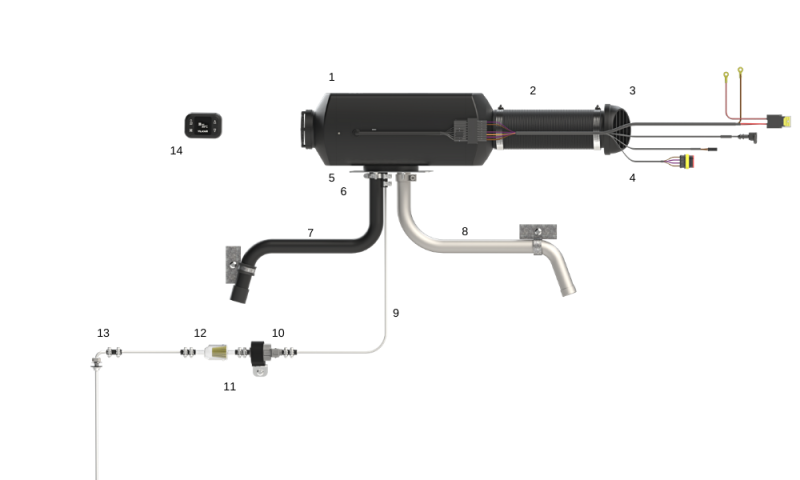

Standard Installation Kit
All parts required for the installation are provided by Yılkar.
1. Air Heater
2. Air routing hose kit
3. Air inlet / outlet vent kit
4. Main wiring
5. Vibration-absorbing seal
6. Combustion and exhaust air clamp kit
7. Combustion air hose
8. Exhaust air hose
9. Polyamide fuel hose
10. Fuel metering pump
11. Vibration damper pump connection kit
12. Fuel filter kit
13. Fuel pull hose kit
14. YH Basic control unit
Control Panels

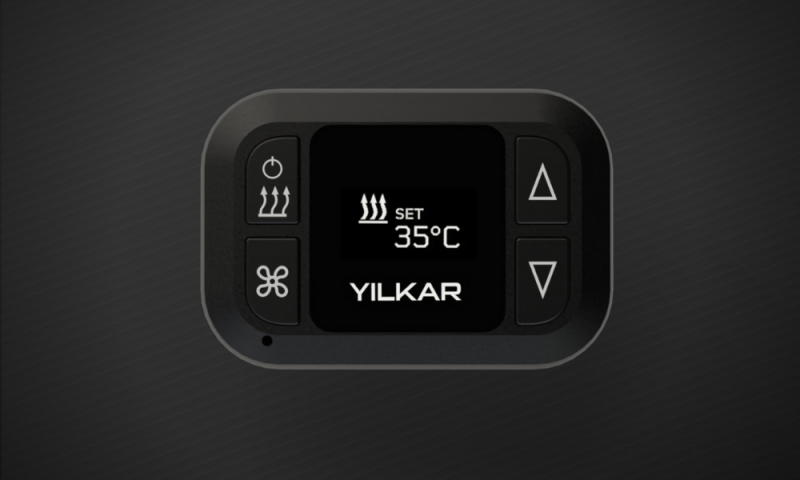

YH Basic control unit
Simple and Multi-functional Control
0.97 inch Oled Large Graphic Display
4 Button Control
Ambient Temperature Sensor
Adjustable Temperature
Heating Mode
Ventilation Mode
Instant Temperature Display
Unit Support
Warning Display
Reset
Altitude limit 1500m

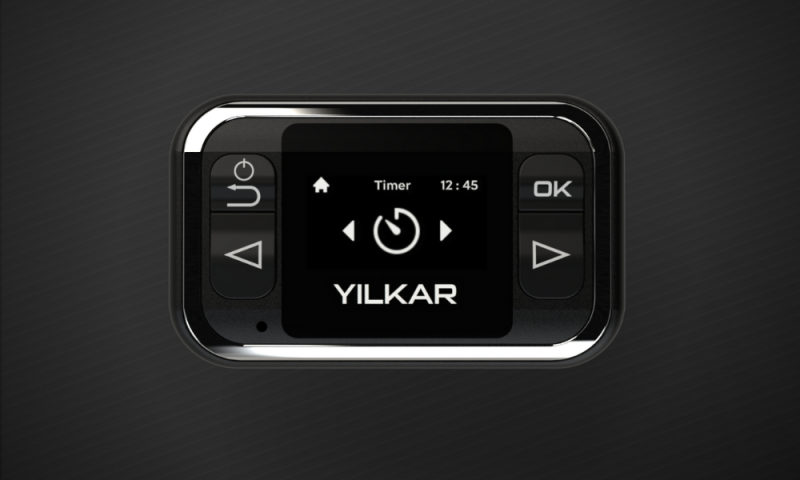

YH Comfort Control Panel
Programmable and Functional
Chrome Frame
1.23 Inch Oled Large Graphic Display
4 button control
Ambient Temperature Sensor
Altitude Sensor
Internal Battery
Weekly Programming Opportunity
Eco, Normal, Max Working Power
Unit Support
Language Support
Sleep Mode
Warning Display
Altitude limit 4000m
Featured Properties

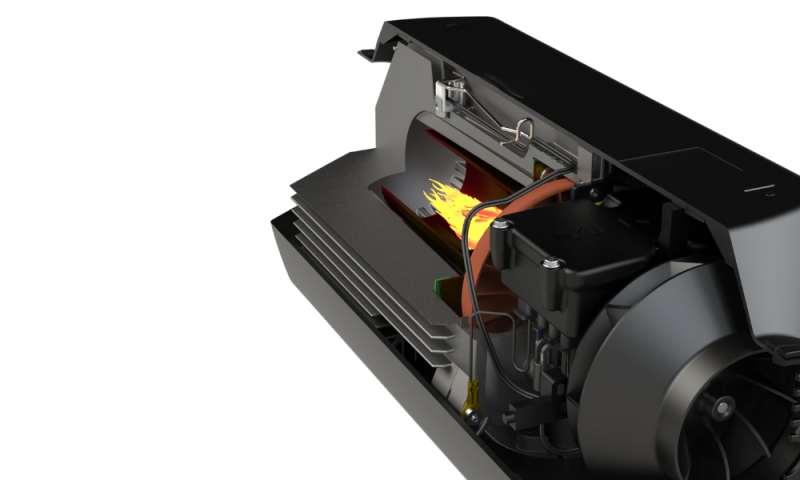

Adaptive Heating Control
Low fuel consumption, optimum thermal comfort
Adaptive heating control is a priority operation algorithm developed by Yılkar's engineers that detects the heating status of your heater and controls fuel consumption.
Thanks to this control, the device senses the energy obtained from the combustion of the fuel and transmits the air at a temperature suitable for comfort conditions in every situation and environment.
In this way, your device optimizes fuel consumption for your needs.

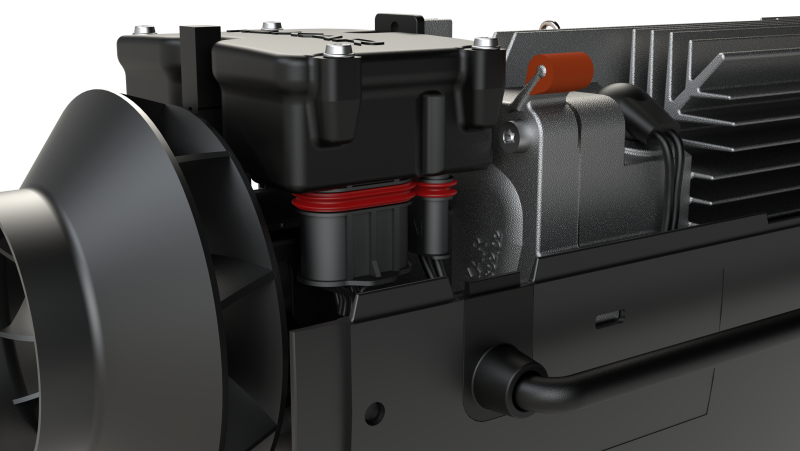

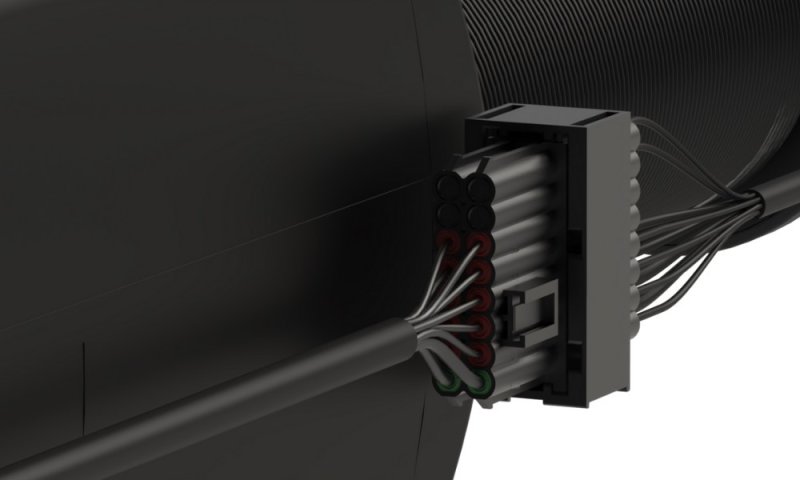

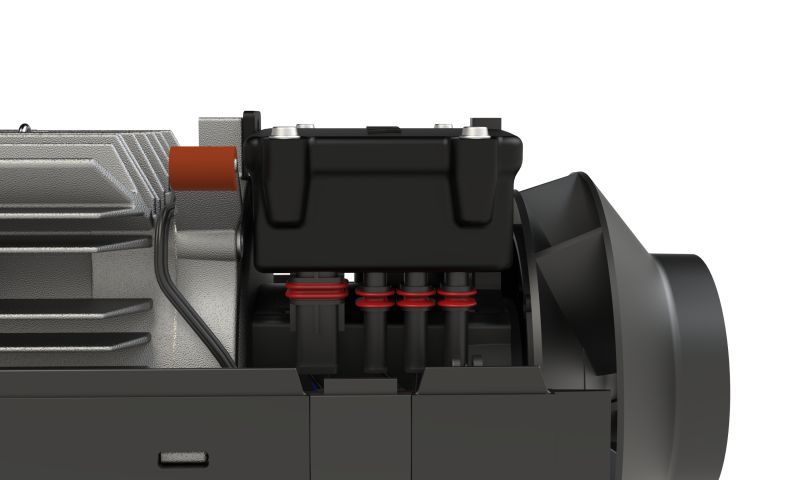

Leakproof Design
Suitable for operation in all environmental conditions with sockets and electrical components with sealing parts
While designing Yılkar Air Heaters, it has been taken into consideration that it can be used in all environmental conditions and has been designed accordingly. All electrical components are equipped with sealing parts.

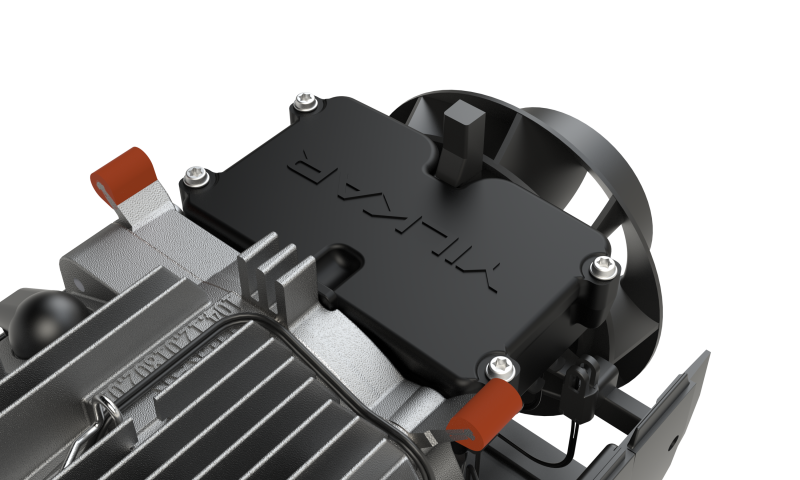

Intelligent Operating System
Intelligent error detection management system and continuous monitoring
Thanks to the smart card and algorithms that control the operation of our air heaters, the device detects 22 different errors and warns the user. In case of need, the malfunction of the device can be easily resolved.

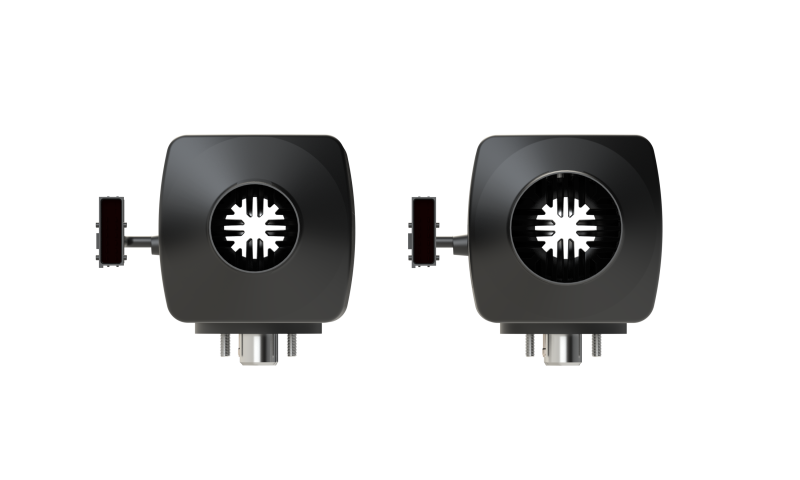

Optional Air Outlet
2 types of air outlet covers
In some applications, you may need to install a larger air flow route. Yılkar air heaters easily fit this demand.
When ordering your device, if you wish;
Ø60 air outlet cover is provided as standard for YH 2 Air Heater.
Ø75 air outlet cover is added to your order in line with your request.
ECE R122 Certificate
Vehicle Heating System Applicability Approval
The ECE R-122 regulation, published by the European Economic Commission (ECE), regulates the principles of type approval for the heating systems of vehicles of categories M, N, and O.
ECE R-122 regulation prevents our diesel-fueled air heaters from overheating, exhaust emission, sealing, etc. Many parameters have been tested.
Our products passed all tests well below the desired limit.
As a result of the tests carried out in the Czech Republic, it has been certified with document number E8 R-122 0010869.
You can download the relevant certificate here.
ECE R10 Certificate
Electromagnetic compatibility approval
This certificate is the type approval test for European automotive electronics. Our air heaters have undergone and successfully passed various tests, including RF immunity and emissions, temporary immunity and emissions.
It electrically meets the requirements for residual burst, fluctuating harmonics, and vibration.
As a result of the tests carried out in Luxemburg, it was certified with the document number E13 R-10 05 15114.
You can download the relevant certificate here.
Accessories
All Solutions for Air Heaters
Grilles, directions, comfort and mounting parts
Air routing accessories and grilles for effective air distribution, silencer parts for your comfort, various assembly parts for your application, and all the solutions you need are offered by Yılkar.
You can view the accessories here.
